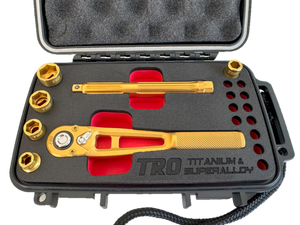

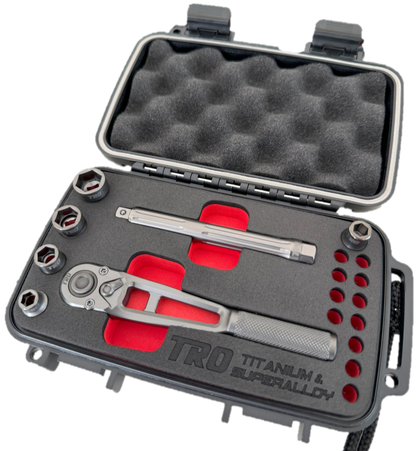

1/4" Dr. Titanium & Superalloy Ratchet + Socket Set (PREORDER)

1/4" Dr. Titanium & Superalloy Ratchet + Socket Set (PREORDER)

Regular price $513.00
Regular price Sale price $513.00
Sale Sold out

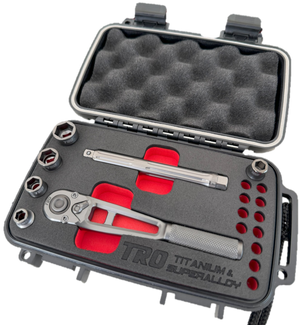

Coating (Required for Superalloy Tools): Charcoal DLC
Titanium Ratchet & Socket Coating
Surface Treatment (ONLY FOR Charcoal DLC, Gold & Bronze)
Quantity
View full details
{ { { { { { { { { { { { { { { { { {

INTRODUCING:

WORLD'S FASTEST RATCHET.

THE LIGHTEST, TIGHTEST FITTING SOCKETS.

Made from Certified Aerospace Superalloy and 100% rust-proof Titanium.

ALSO AVAILABLE AS A 5PC SET (TITANIUM ONLY)

Multiple world record holder.

Designed to be the benchmark for fully functional tools at the lightest possible weight. We ended up with some new records in the process. Here's a few of them:

⚙️ The World's smoothest & fastest ratchet.

⚡ Lightest functional toolset½ the weight of normal sets.

🔧 Tightest fitment – Sockets lock onto fasteners with next to zero play.

*ESTIMATED SHIP DATE: DEC. 2026*

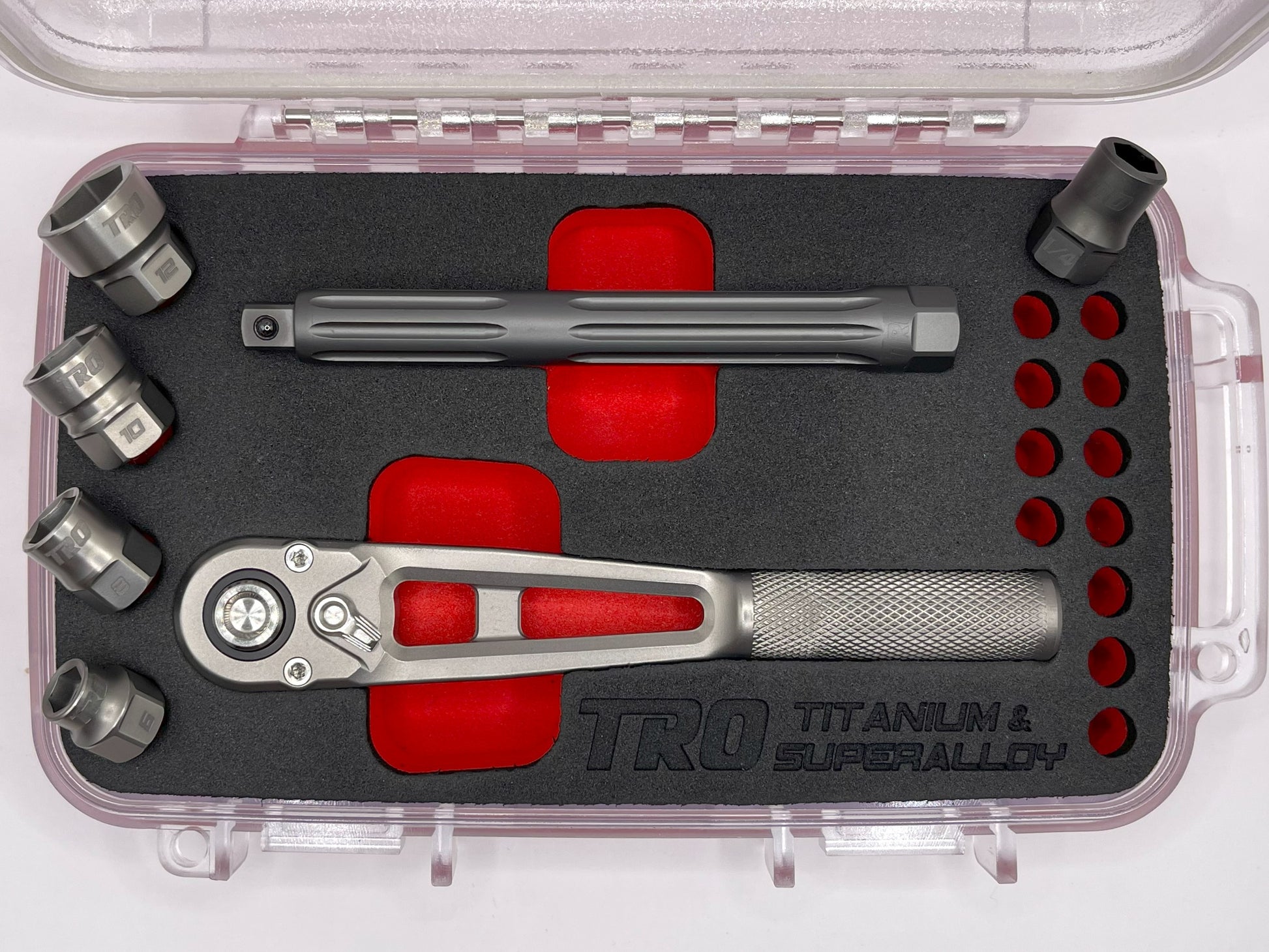

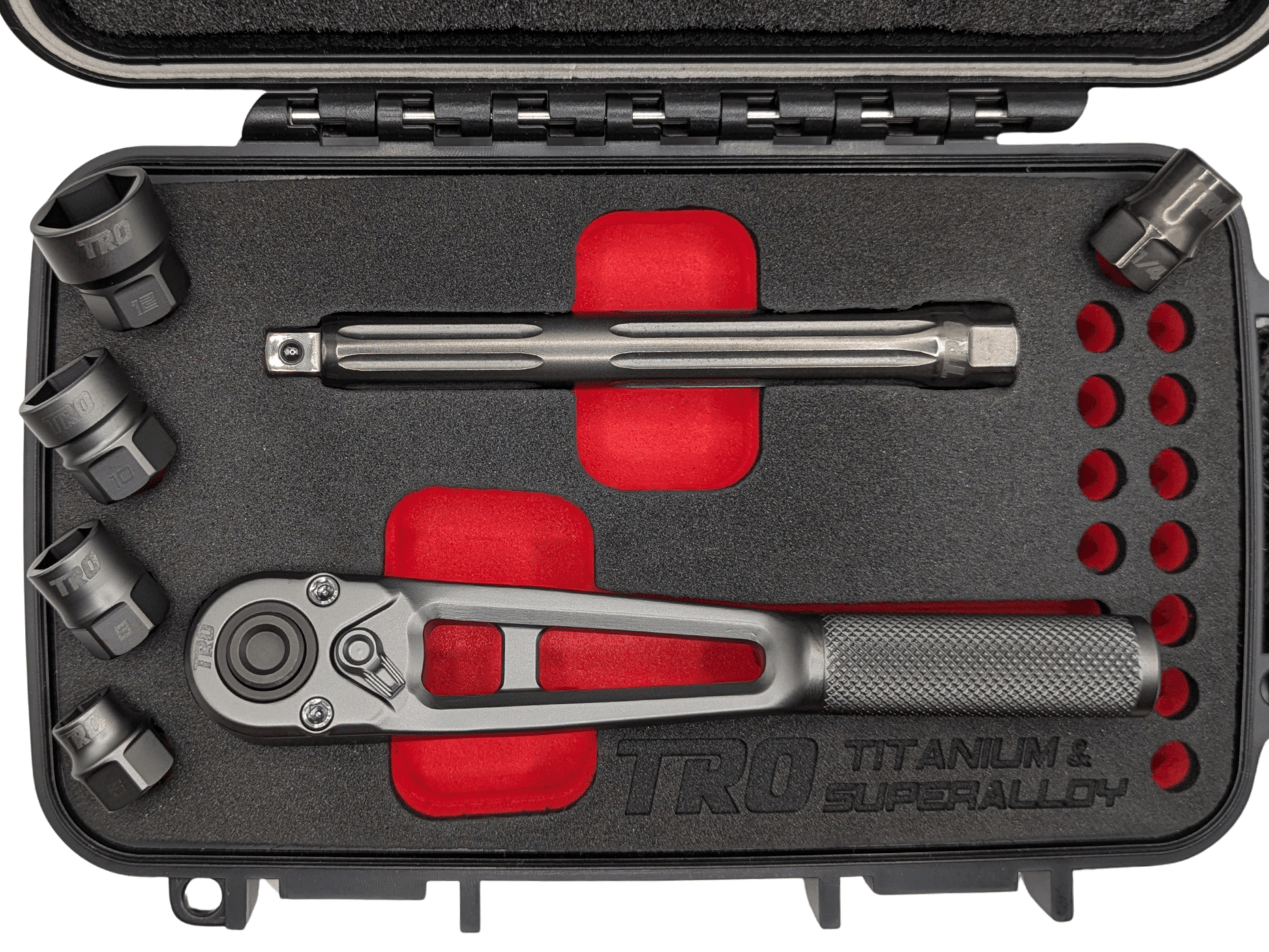

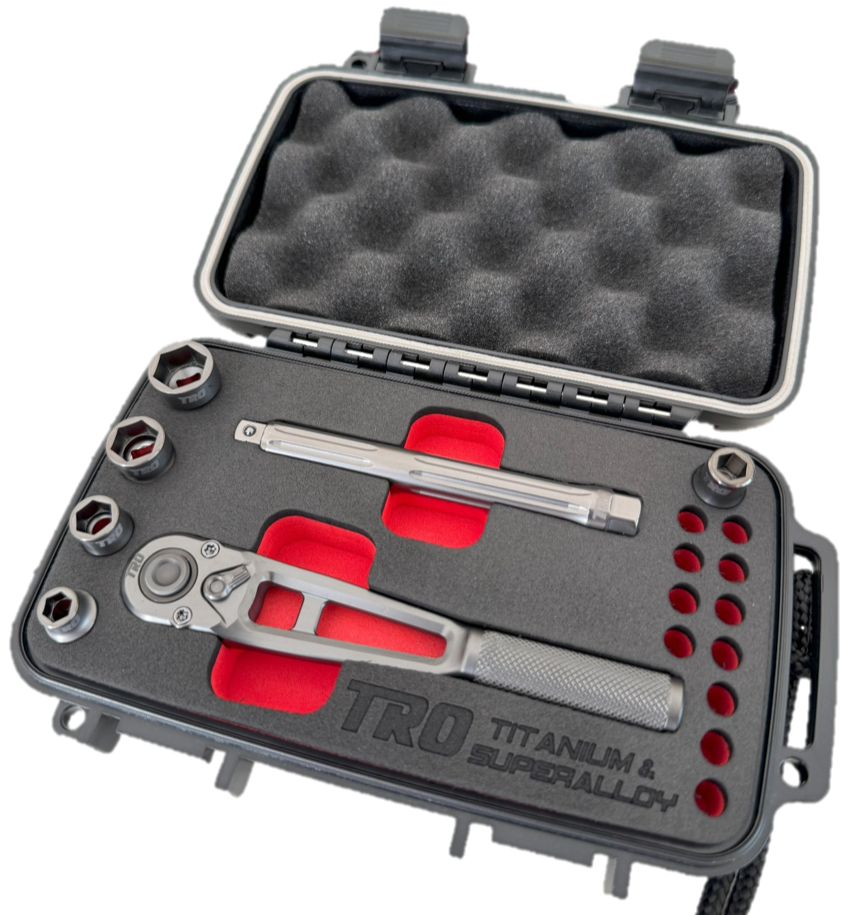

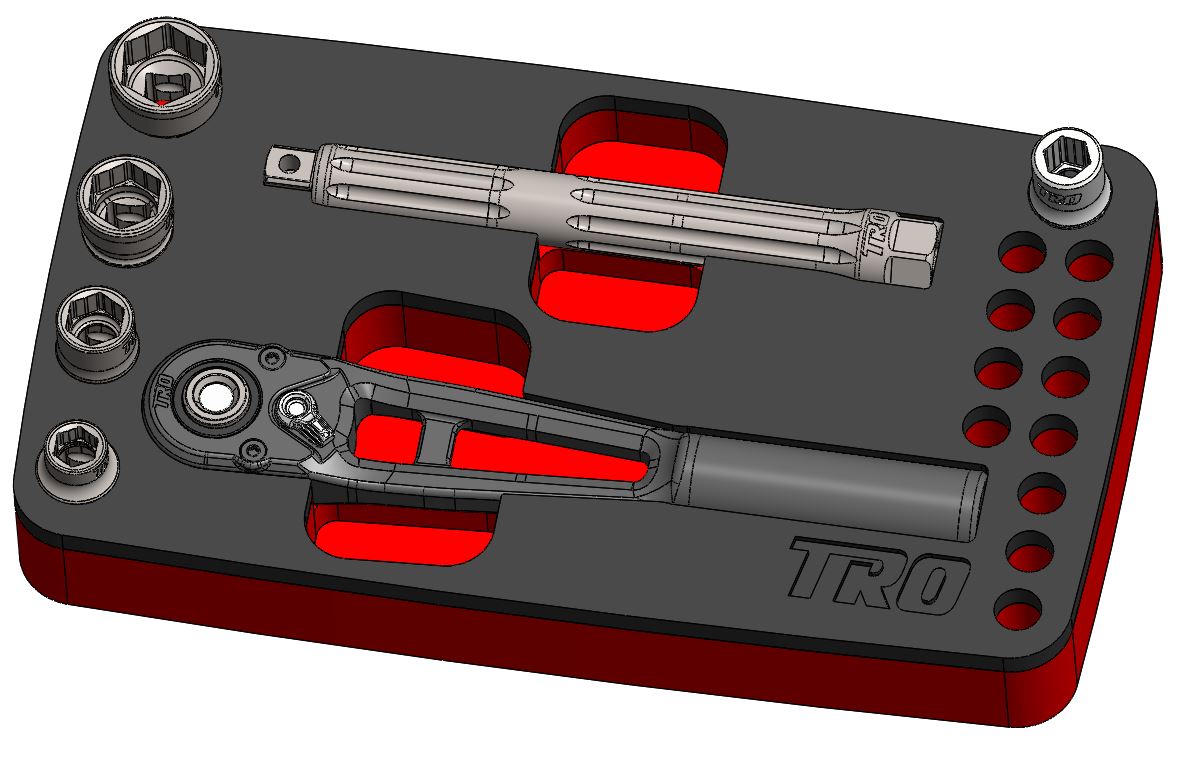

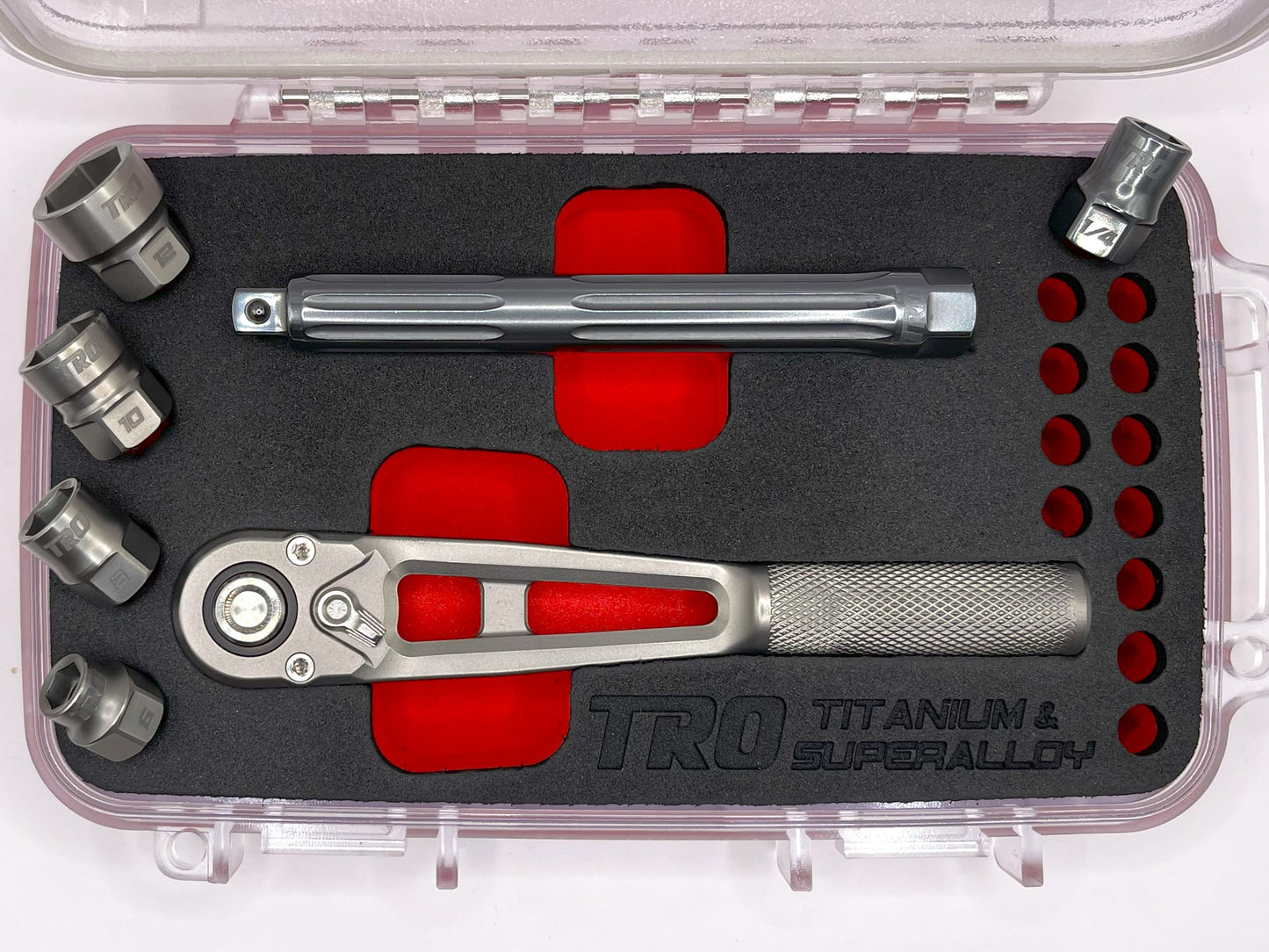

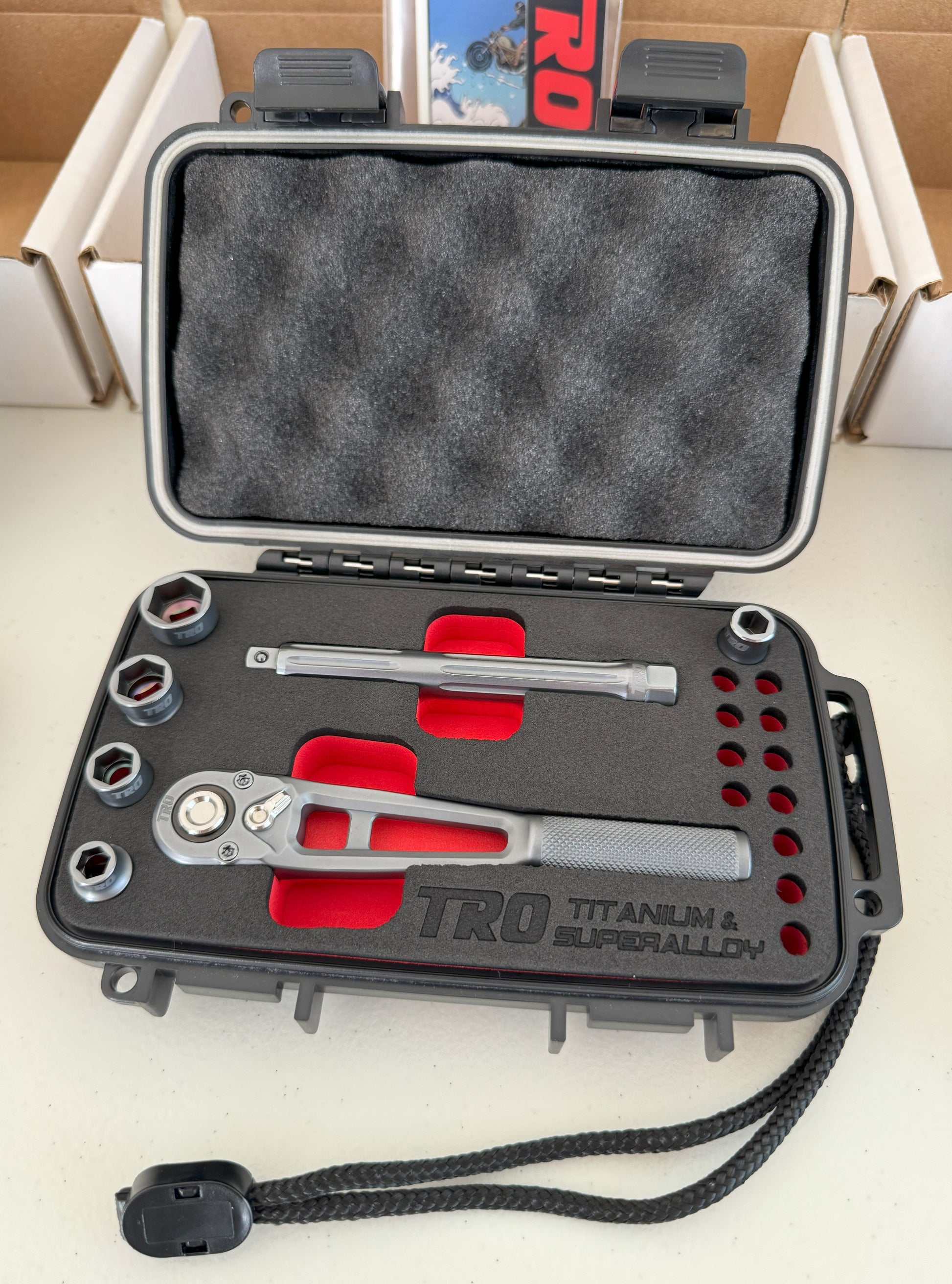

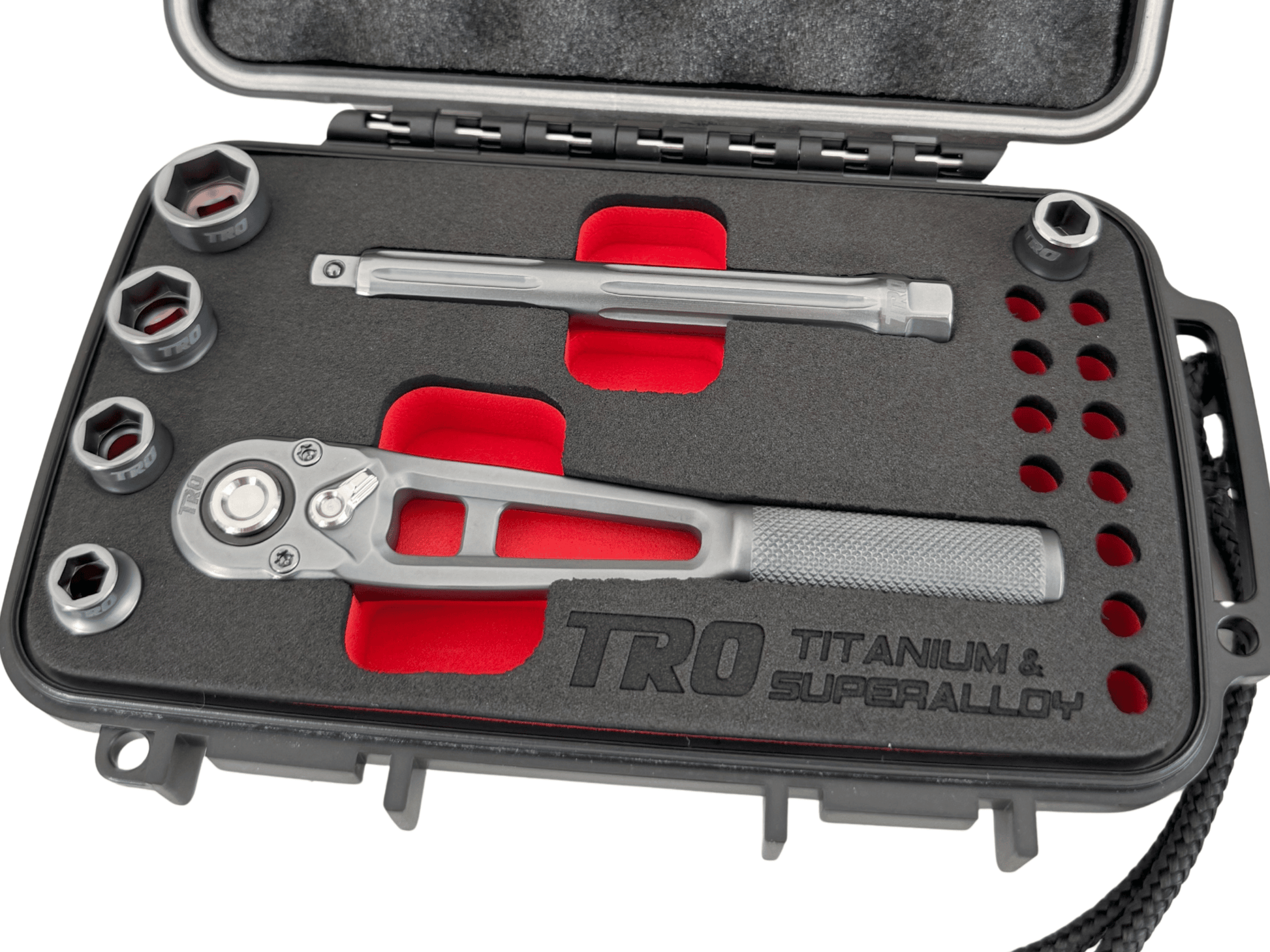

TOOLS/MATERIALS INCLUDED:



The centerpiece of this set is the Titanium Superleggera Ratchet. Two outstanding features make it smoother & ratchet faster than anything on the market:

⚙️ Incredibly Smooth gear mechanism (lowest back‑drag ever)

🔩 Ultralight Handle (massive reduction in inertia)


The result:

With up to 80% less rotational resistance than standard ratchets, you can save energy and enjoy feather-light ratcheting or go full speed and turn screws nearly twice as fast - your choice.
No other ratchet can physically come close.

MORE INFO:

SMOOTH IS FAST

We've ruthlessly stripped excess weight and mechanism friction, leading to an effortless swing and unmatched ratcheting speeds.

The Smoothest Mechanism on the Planet
With a backdrag torque of just 0.5 in-oz (36 g-cm), our ratchet is in a class of its own.

TRO Designs Titanium Ratchet Backdrag Measurement

Polished and DLC coated Gear
Reduces friction even further and provides a hard-wearing surface. A first in hand tools.

Smooth is Fast
A standard ratchet wastes 5× more torque to internal drag and has 4.8× more handle inertia than the Superleggera. With less resistance holding you back, you can tighten screws in nearly half the time.


Built-in Smoothness
Our baseline freewheeling smoothness is levels above existing ratchets - in the demo below, pawls and springs are removed to show the contribution of the gear-only friction.



Less Inertia, More Control
With such low resistance to motion, this ratchet responds instantly and stops on a dime.

SUPERALLOY SUPER STRENGTH

Our Hex Bit Holder & Extension are machined from a Superalloy that's 2–3 times stronger than typical Cr‑V or Cr‑Mo steels. The same alloy used in jet engines and landing gear. Certified flight hardware material in your hand.
Smaller. Lighter. Stronger.
This exceptional strength, combined with the tightest clearances on the market, enables our radical yet robust lightweight designs.

Dual-Function
The extension also acts as a perfectly fitting cheater pipe when inserted into the ratchet handle. Extra reach & leverage on deck.

Twist-free Torque
Inspired by fluted precision rifle barrels, our extension has 50% greater torsional rigidity than standard extensions for a direct, twist-free feel.



Built to Aerospace Standards
This isn't "aerospace grade" marketing BS. Our Superalloy material
conforms to the following specifications:

  • Mil-Spec
  • Defense Federal Acquisition Regulation Supplement (DFARS)
  • Aerospace Material Specifications (AMS)
  • (3x) GE Aviation Standards.



Tougher than the Average
Crank most tool steels to peak hardness and they become brittle. VIM+VAR refining ensures our Superalloy has exceptional fracture toughness. It's a unique alloy combining both Ultra High Strength AND Toughness.

ULTRALIGHT

Titanium has steel‑like strength at just 56% of the weight. Our optimized geometry further exploits Titanium's strength‑to‑weight ratio. The Superleggera is nearly full Ti Alloy.



Less work to use
This is the world’s lightest 1/4" ratchet (without torque limitations). At just 52 g (1.8 oz), every motion feels effortless. It's lighter than some bit ratchets!



Freedom of Ultralight Tools
At 125 g (4.4 oz) total for the entire kit, you can carry a full tool set with you at the same weight as 1 normal ratchet - or use the freed-up weight for more equipment.


Proven Durability
Refined via Finite Element Analysis and 3rd-party tested to a maximum failure torque of over 73 ft-lbs (99 Nm), far exceeding the demands of normal 1/4" drive use.

TRO designs Titanium Ratchet FEA Simulation of 200 lbf on Handle

THE ULTIMATE FIT

Experience the absolute tightest fitment on fasteners, reducing stress and preventing rounding.

Exceptionally tight clearances.
Sockets and drives machined to exceptionally tight tolerances for a near-perfect fit.

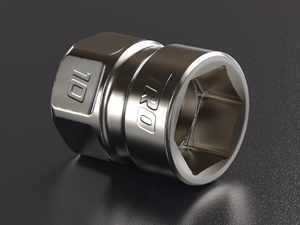

TRO Titanium Plug Socket image shown for example:


Zero Play = more surface engagement means less stress on both the tool & fastener. They're also less prone to marring delicate fasteners.

COATINGS

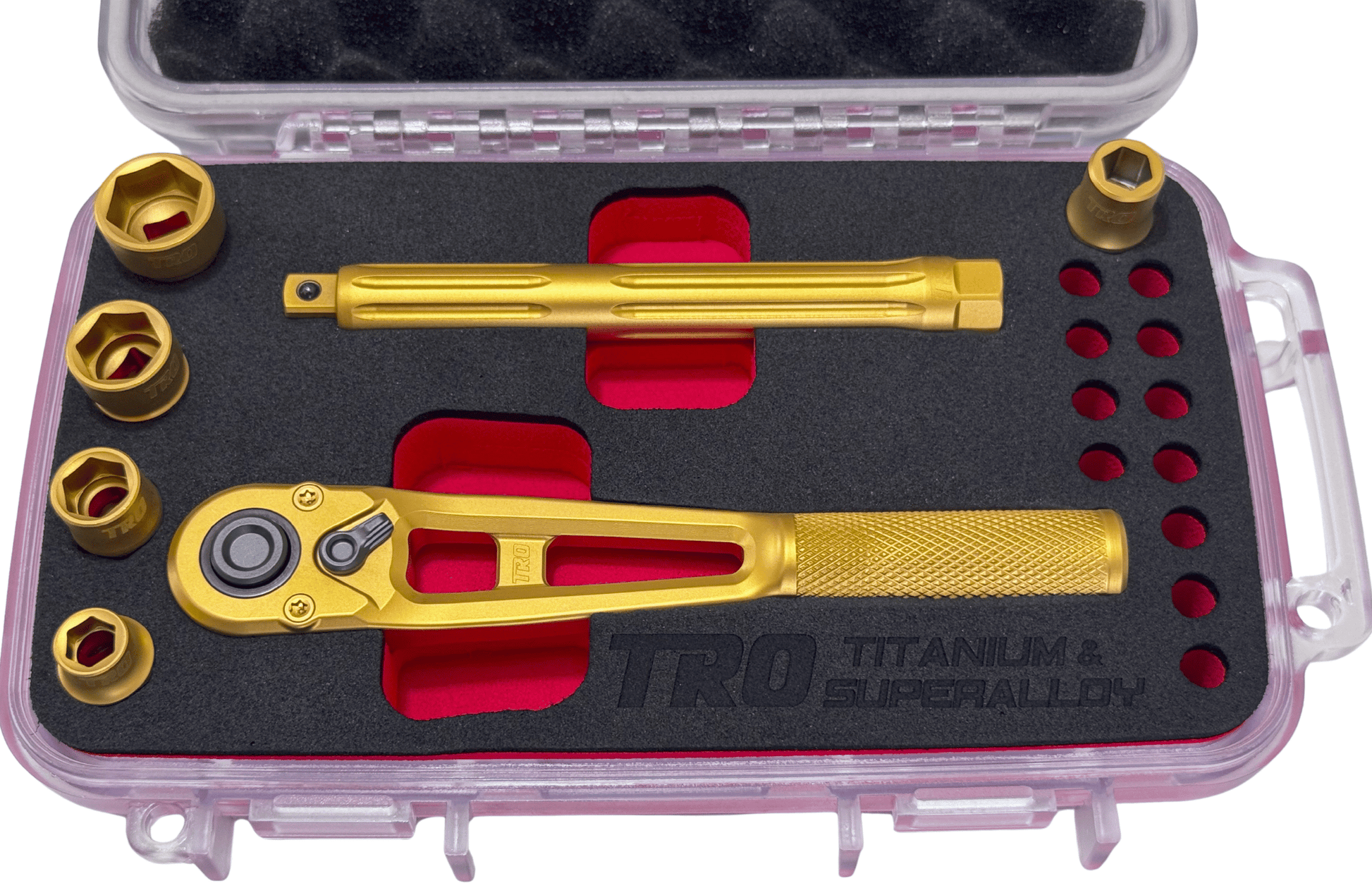

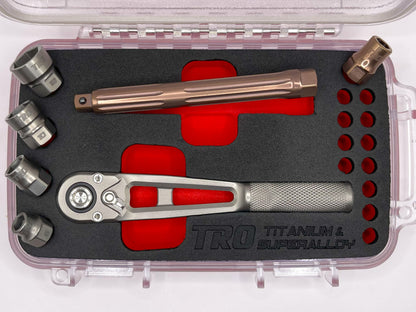

Standard Charcoal DLC, Gold (TiN) or Bronze (Si) are our recommendations. They combine the best combination of wear resistance, low friction, price and coating adhesion/coverage/surface roughness.

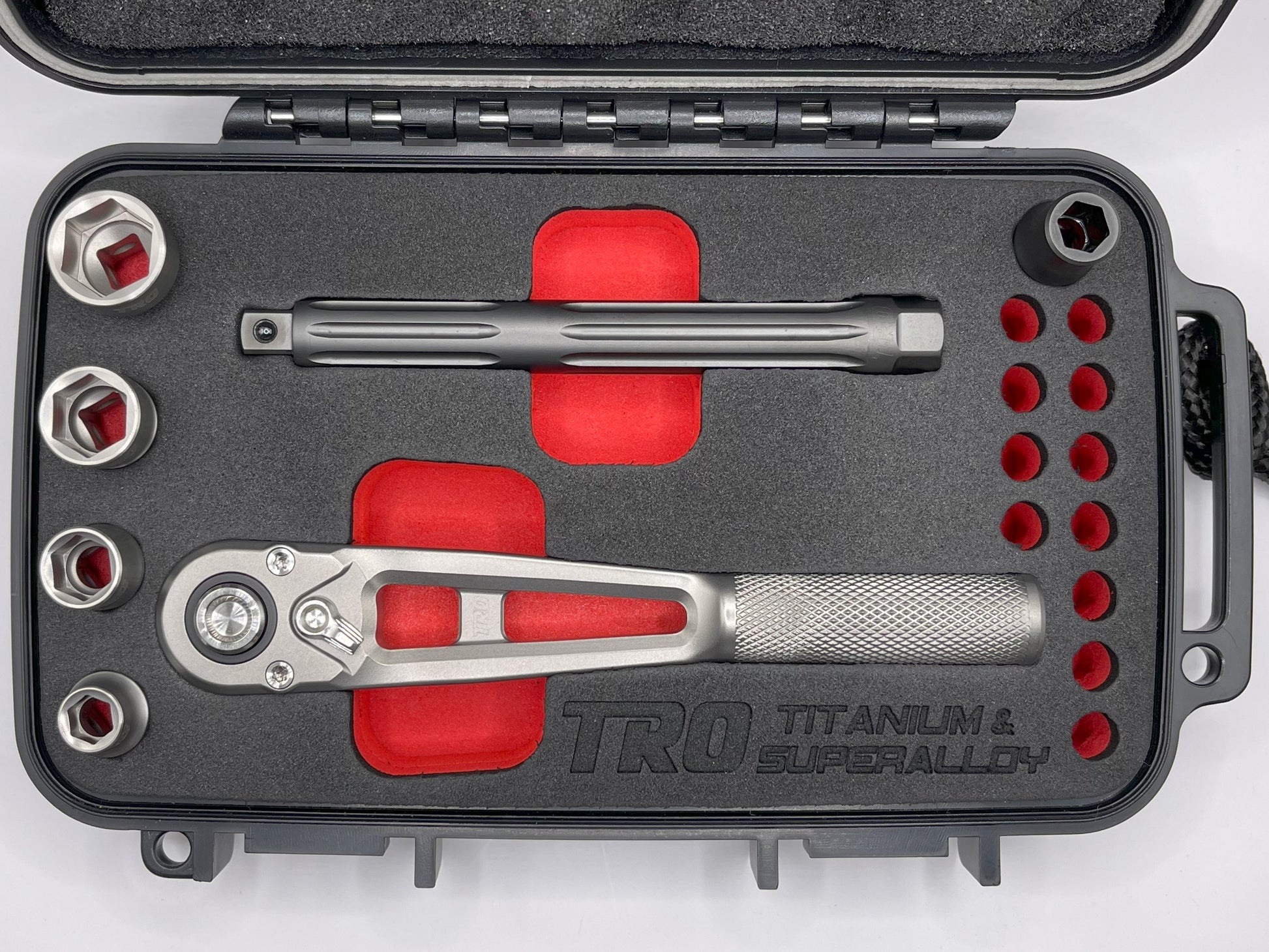

**Uncoated Raw Titanium is offered but is not recommended for heavy duty usage as it will be more prone to scratches/damage/wear (Titanium is relatively soft compared to steel). Back-drag will still be lower than the average ratchet, but possibly slightly higher than our coated versions.

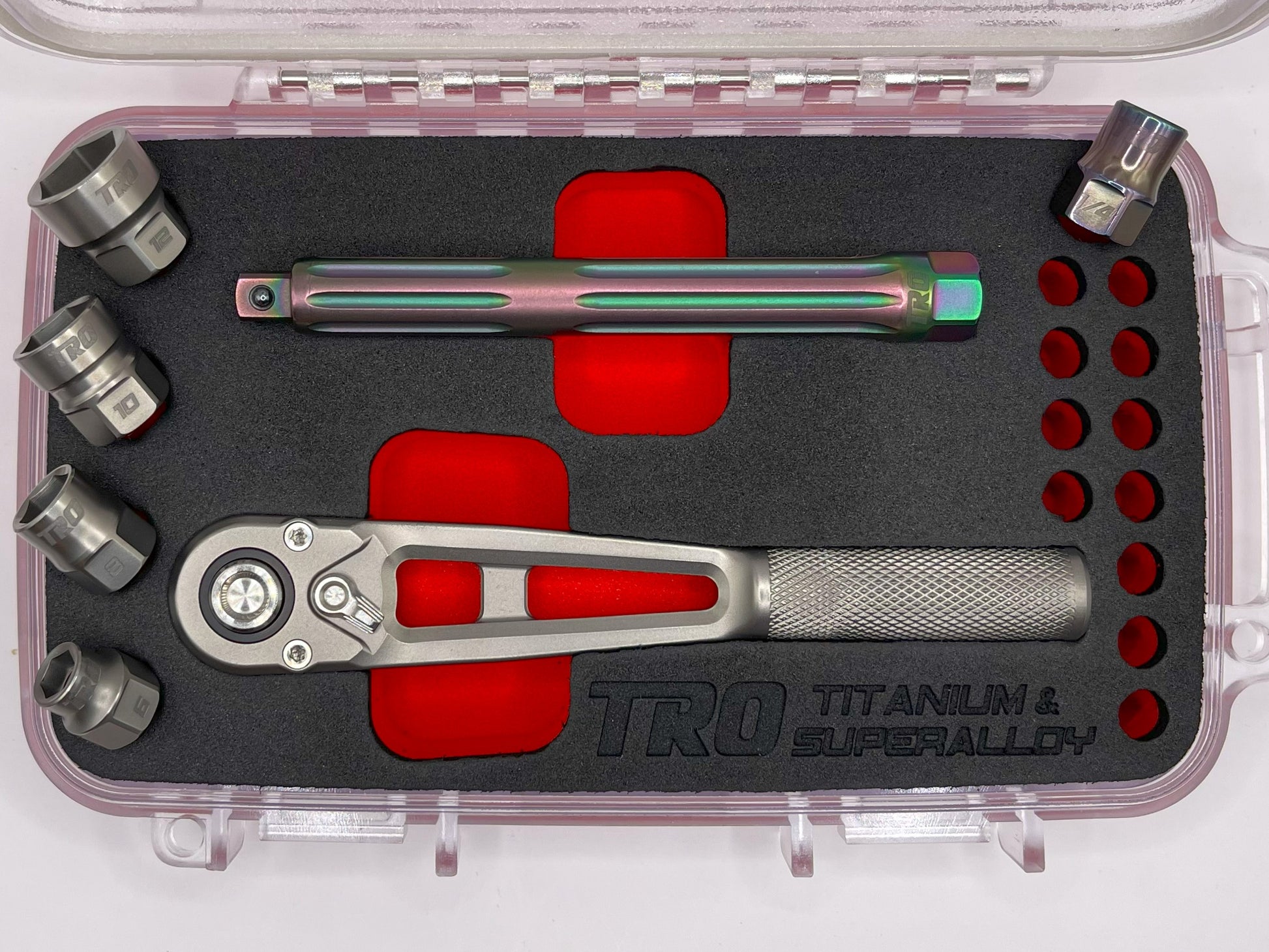

Dark Iridescent Chrome and Iridescent DLC coatings are not controllable and the colors vary GREATLY. Examples shown below.

Iridescent DLC is exceptionally thin (10x thinner than normal coatings) so it does not have great damage tolerance.

COATING SURFACE
HARDNESS (VICKERS)
THICKNESS (μm) FRICTION
COEF.
UNCOATED TITANIUM 400
0.4
UNCOATED SUPERALLOY 550
-
CHROME PLATING (FOR COMPARISON) 950 20-40 0.2
DLC (CHARCOAL) 1600 3 0.1-0.2

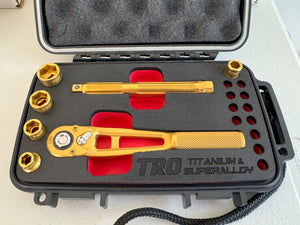

TiN (GOLD) 3000 3 0.6
CrN (DARK IRIDESCENT) 3000 7 0.5
Si (BRONZE) 3800 2-4 0.4
AlCrN (BLUE-GRAY) 4490 5 0.35
DLC (IRIDESCENT) 6600 0.3 <0.1



All custom-machined titanium Torx fasteners are finished in a matching coating.

TRO Designs Titanium Ratchet TiN DLC Titanium Torx FastenersCoated
Coating Examples for Dark Iridescent Chrome and Iridescent DLC:

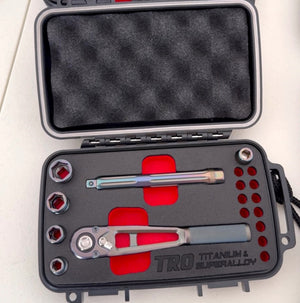

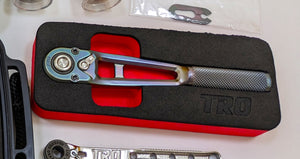

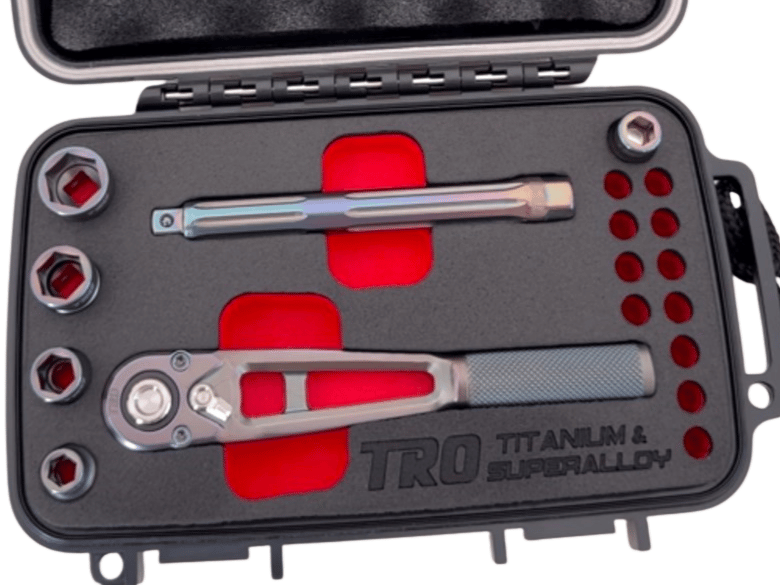

Dark Iridescent Chrome

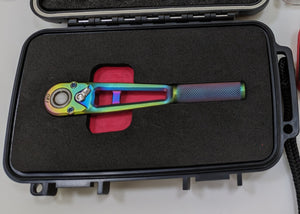

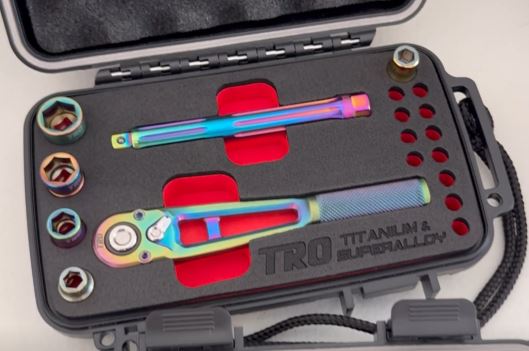

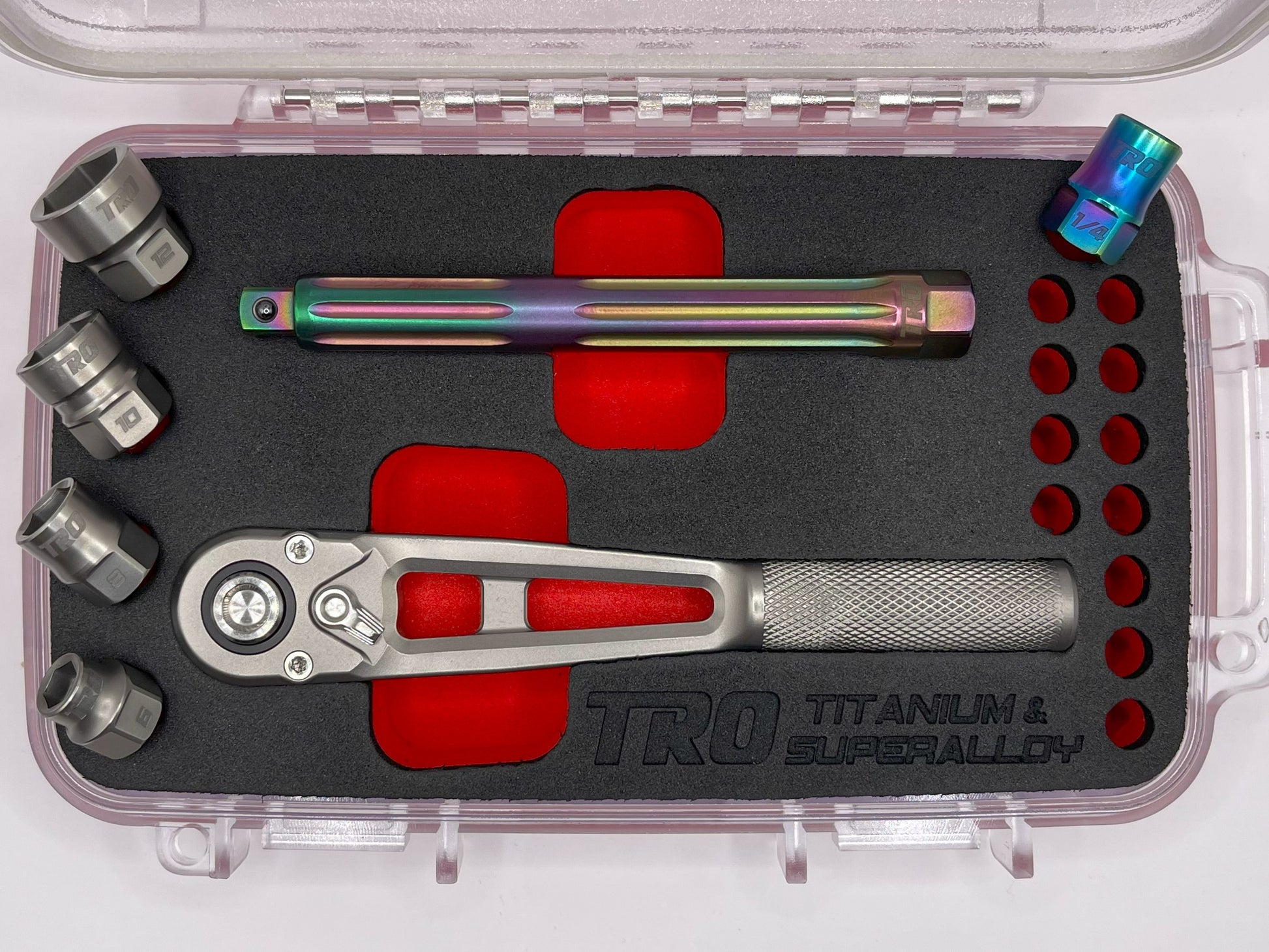

Iridescent DLC




WPC + CRYO OPTION

Optional WPC + Cryogenic Treatment

These combined treatments maximize the surface hardness (wear resistance) and reduce friction to the minimum. Leaves a unique matte surface finish.

**FOR CHARCOAL DLC, GOLD TiN & BRONZE Si COATINGS**


- WPC Treatment is a "micro shot peening" process that originated in Japan. The process involves bombarding the metal surface with extremely hard, fine particles at near-sonic speeds. This creates micro dimples on the surface which leave a hardened outer surface with high compressive stress - this reduces crack propagation and therefore increases fatigue life. The surface is left very smooth with a lowered coefficient of friction due to the micro dimples.

- CryoHeat Deep Cryogenic Treatment (DCT) uses liquid nitrogen to take the material temperature down to -196°C and is held for 18 to 48 hours. Many steel and Titanium alloys see large increases in fatigue strength and surface hardness due to grain refinement and conversion of Austenite to the harder Martensite.






WORLD RECORDS

LIST OF WORLD'S BEST FEATURES:

(1X) SUPERLEGGERA RATCHET
- The lowest backdrag mechanism
- Highest failure torque to weight ratio
- Corrosion-proof Titanium alloy body
- Fastest ratcheting speeds

(1X) SUPERALLOY 100 mm 1/4" DRIVE EXTENSION:
- Highest strength alloy used in consumer hand tools
- Stiffest extension available
- Tightest fitment on male square drive
- Tightest fitment on external hexagon drive

(1X) SUPERALLOY 1/4" HEX BIT HOLDER:
- Highest strength alloy used in consumer hand tools
- Lightest Bit Holder for High Torque usage
- Tightest fitment on hex bits
- Tightest fitment on external hexagon drive

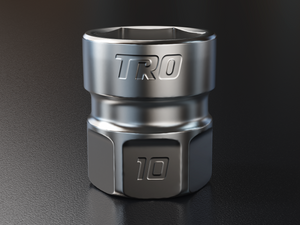

(4X) TITANIUM 1/4" DRIVE SOCKETS:
- Lightest sockets on the market
- Corrosion-proof Titanium alloy body
- Tightest fitment on hex head fasteners
- Tightest fitment on external hexagon drive

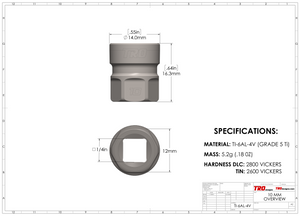

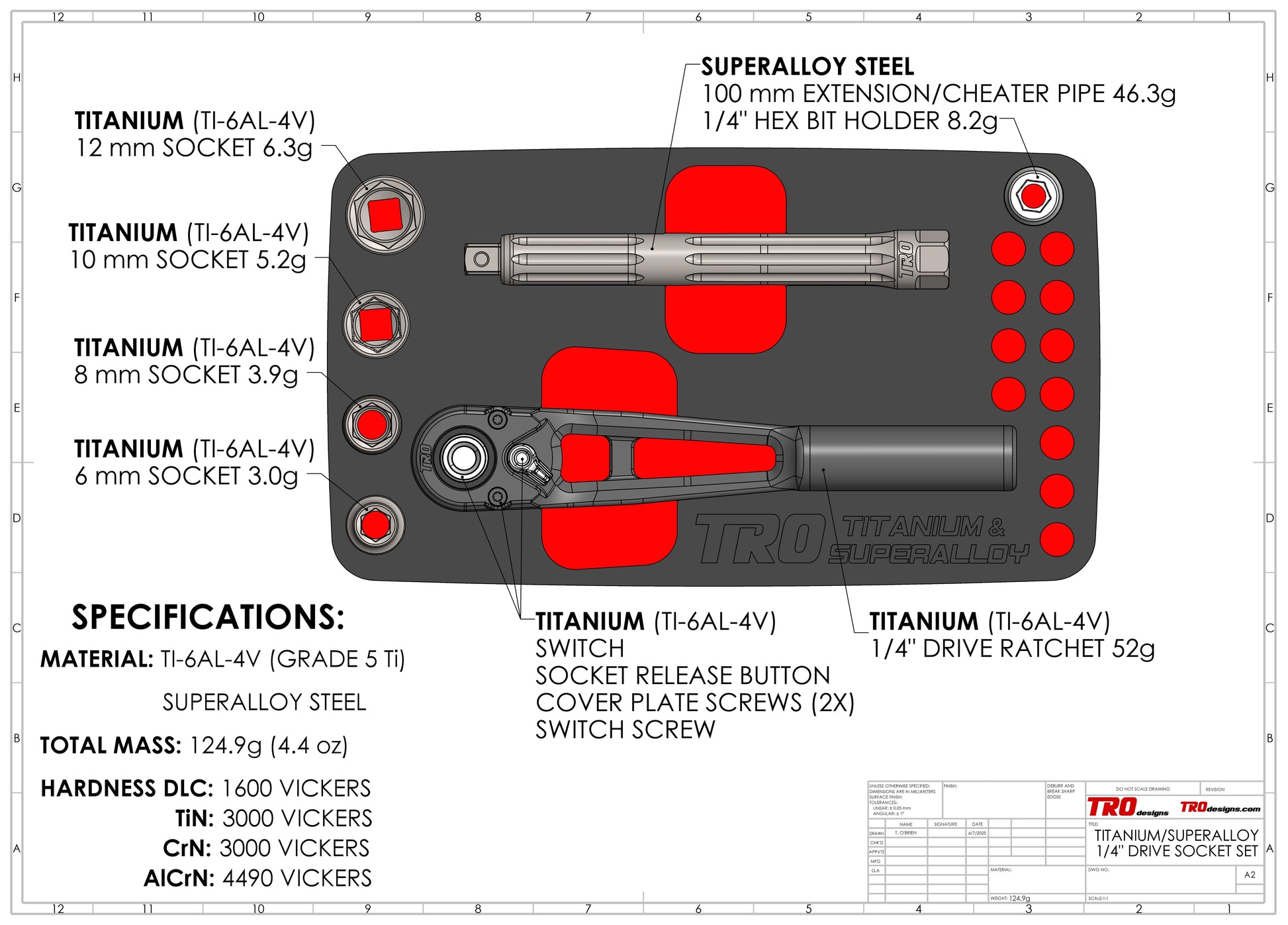

DIMENSIONS

PRESS REVIEWS

An in-depth review by Australian Professional bike mechanic and journalist Dave Rome (well worth reading if you're a bike tool fiend):

 Threaded #13: The return of New Tools Day - Escape Collective

A few short excerpts from the full article linked above.

"These ratchets are designed to be the benchmark for a fully functional ratchet at the lightest possible weight (for a portable moto tool kit). This one has all the fancy things, including a CNC-machined Ti-6AL-4V body, 3D-printed titanium switch, and titanium fasteners."

Photo Credits: Dave Rome, Escape Collective, "Threaded #13: The return of New Tools Day"

"On top of being light, this 72T ratchet also has the lowest backdrag (the friction in getting the tool to ratchet, lower is better) of any ratchet I’ve ever used. And yes, it’s even lower than the benchmarks of Koken Zeal and Nepros (the premium brand of KTC).

Photo Credits: Dave Rome, Escape Collective, "Threaded #13: The return of New Tools Day"

"Ok, it’s beautiful, amazingly light, corrosion-proof, and the smoothest of all. The catch? A tiny ratchet like this retails for US$233-US$248 (depending on coating). Also, I bought one of the last of the batch and so availability is currently nil.


Our most recent review of the Superleggera Ratchet comes from Japan - Hato's Tools (鳩はとの工具箱) YouTube channel graciously featured our Titanium 1/4" Ratchet as one of the best tools in 2024:



 A very honest initial review of our Superleggera Titanium Ratchet by a Japanese tool reviewer "Hato's tools":



Our debut on "Project Farm" - proved our strength to weight ratio (and backdrag) is the best in the world, even among top brands from the US, Japan and Germany:



A quick intro to the insanely tight clearances and fitment of our Titanium Spark Plug Socket, by "Last Best Tool".

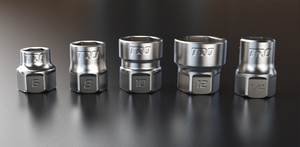

A demo of our ultralight Titanium socket set.
